Central Venous Catheters
Central Venous Catheters
QMD™ introduces its Biometrix™ Central Venous Catheter Program, engineered to ensure safety and performance. The Central Venous Catheter Program offers a variety of patient sizes (pediatric and adult), insertion sites and applications. A comprehensive portfolio includes kits for both adult and pediatric patients which are used in various acute settings in Hospitals.
Indicated Therapies
- Continuous or intermittent drug infusion
- Parenteral Nutrition
- IV Solutions with high osmolality
- Central venous pressure monitoring
- Blood sampling
- Whole blood or blood products transfusion
Our Central Venous Catheter Program offers a variety of patient sizes (pediatric and adult), insertion sites, and applications.
Main Features
- High grade Radiopaque Polyurethane material – highly biocompatible and kink resistant material, radiopaque for catheter positioning via X-ray.
- Clear and readable length markings – assist in accurate placement of the catheter.
- Flex Catheter Tip – geometric tip design enables safe and easy insertion and manipulation through the vascular system.
- Clearly Marked Extension and Color-Coded Hubs – reduce the risk of misconnections.
- Movable Fixation Clip – to allow optimal skin fixation, regardless of depth of catheter, which minimizes trauma and irritation to the puncturing site.
- CLAVE* Needleless Connector – help reduce the risk of CRBSIs and minimize bacterial contamination.
*CLAVE™ is a registered trademark of ICU Medical, Inc.
Lumen Designs of Biometrix Central Venous Catheters (Cross Section)
Single
Double
Triple (7Fr)
Triple (8.5Fr)
Quatro

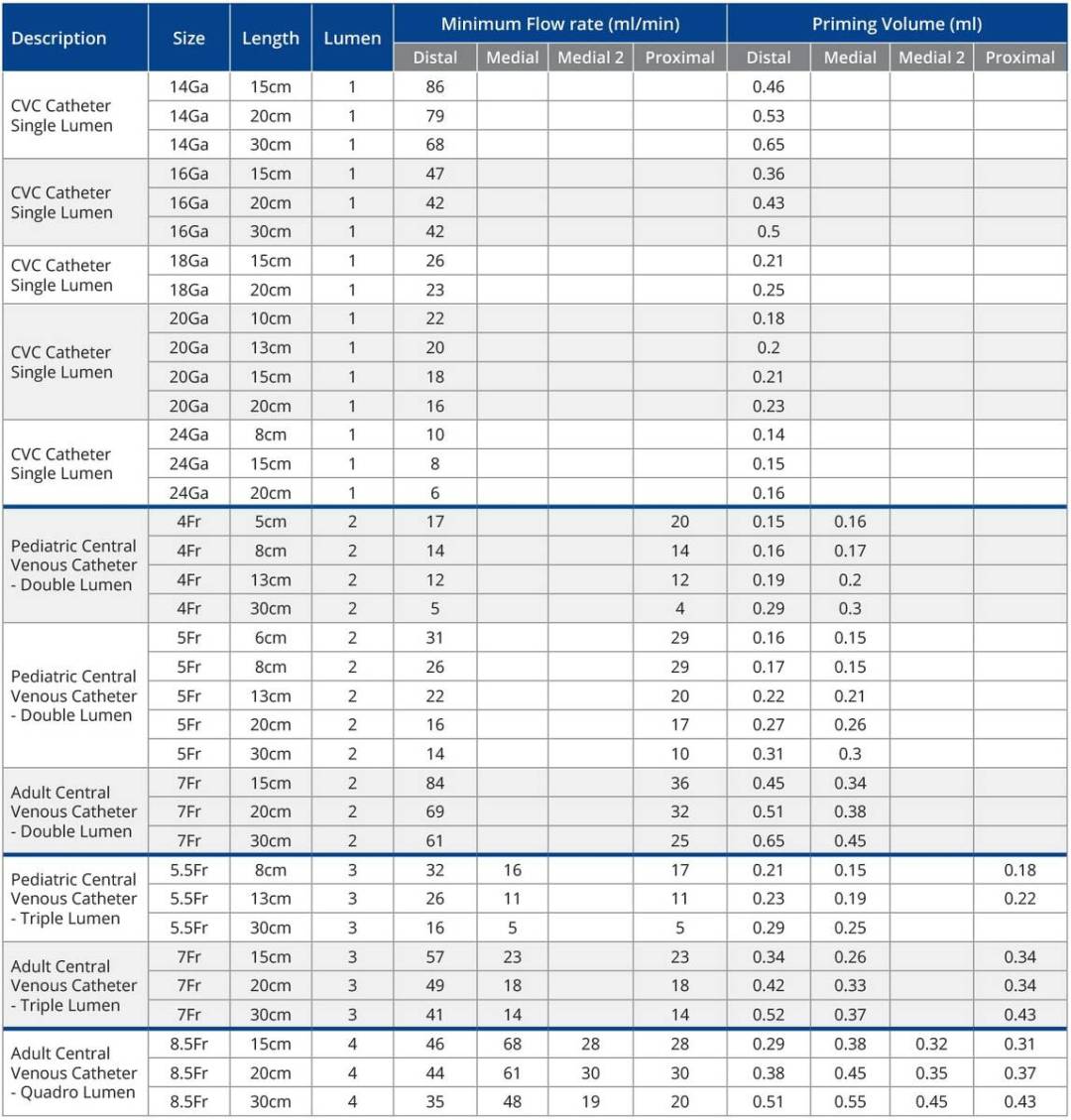

Flow Rates and Priming Volumes
Priming volumes represent priming of the catheter itself without the caps. Flow rates are performed with saline water at room temperature and represent approximate flow capabilities.
Flow Rates and Priming Volumes
Biometrix Bedside Kits and Trays provide a convenient range of components required for placement of a Central Venous Catheter for critically ill patients. The trays are conveniently designed and sequentially organized to allow efficiency and accuracy of the catheter placement procedure.
Along with our portfolio of Central Venous Catheter Kits, QMD offers the option for custom-made kits produced according to customer requirements, including a wide range of components to meet all challenging access needs.
Adult & Pediatric – Single, Double Triple and Quadro Lumen Kit Designs
BIOMETRIX STANDARD CVC KIT
Contains:
- Scalpel #11 with Short Handle
- Nitinol Guide Wire, with depth marking and double flex tip
- Guide Wire Dispenser
- Central Venous Catheter
- Movable Suture Wing
- Introducer needle
- Centric Luer Syringe 5cc
- Vessel Dilator
- Heparin Lock
BIOMETRIX PLUS CVC KIT
Contains:
- Scalpel #11 with Short Handle
- Nitinol Guide Wire, with depth marking and double flex tip
- Guide Wire Dispenser
- Central Venous Catheter
- Movable Suture Wing
- Y Introducer Needle
- Centric Luer Syringe 5cc
- Vessel Dilator
- Heparin Lock
BIOMETRIX PRO CVC KITS
Contains:
- Scalpel #11 with Short Handle
- Nitinol Guide Wire, with depth marking and double flex tip
- Guide Wire Dispenser
- Central Venous Catheter
- Movable Suture Wing
- Y Introducer Needle (Introducer Needle for Pediatric)
- Centric Luer Syringe 5cc
- Vessel Dilator
- CLAVE* Needleless Connector
BIOMETRIX PREMIUM CVC KIT
Contains:
- Scalpel #11 with Short Handle
- Nitinol Guide Wire, with depth marking and double flex tip
- Guide Wire Dispenser
- Central Venous Catheter
- Movable Suture Wing
- Introducer Needle with Echogenic Tip
- Quick Insertion Syringe 5cc
- Vessel Dilator
- Heparin Lock
- CLAVE* Needleless Connector
*CLAVE is a registered trademark of ICU Medical, Inc.
Distributor Opportunities are available.
Contact us for more information.
